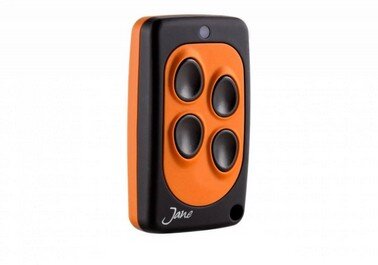

Jane távirányító
Jane tulajdonságok
- Esztétikus
- Puha tapintású
- Masszív távirányító
- Fix kód 26.670-40.685 MHz
A távirányító új állapotban NEM tartalmaz kódot!
Az elterjedtebb kis frekvenciájú távirányító típusok
- HÖRMAN 26.975 MHz / 40.685 MHz
- CAME 26.995 MHz
- DICKERT 27.015 MHz / 40.685 MHz
- BOSCH 26.995 MHz
Tanítási folyamat
- Nyomja meg és tartsa nyomva azt a gombot amelyikre tanítani szeretné meglévő távirányítójából a kódot. A LED villogni kezd, NE engedje el a gombot!

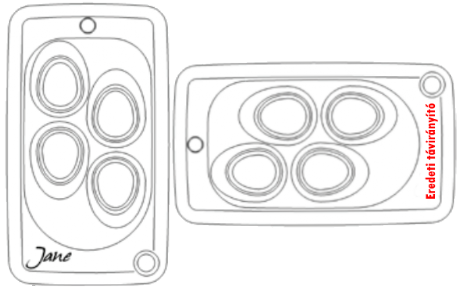

- Helyezze a távirányítókat a képen látható helyzetbe vagy egymás mellé.
- Nyomja meg az eredeti távirányítón a gombot, és csak akkor engedje el ha a Jane a villogásból fix világításra vált.
- Az eredeti távirányító másik gombjának (kódjának) másolásához válasszon egy másik gombot, az új Jane távirányítón és ismételje meg a teljes műveletet.
Hibaelhárítás: Ha a folyamat nem fix világítással zárul, hanem villogás után egyből elalszik a LED, a folyamat sikertelen volt! Próbálja a tanításhoz más pozícióba helyezni a távirányítókat!
Angol nyelvű termék információ - English product information
JANE - Remote control that copies and saves fixed codes of frequencies between 26 and 40 MHz. The JANE cannot have more than one frequency.
DUPLICATION PROCEDURE - Duplicate codes for each individual button.
The device can be programmed even before inserting the quartz oscillator.

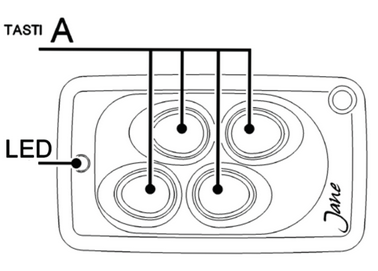

- Position the JANE and the original remote as in figure 1.
- Press and hold the A button you wish to use to duplicate. After 6 seconds the LED will begin to flash.
- Press and hold the button of the remote to be copied and wait until the LED stops flashing, if it stays on, it means that button A has copied and saved the transmitted code.
- Release button A and the one on the original remote.
To copy another function of the original remote repeat the entire DUPLICATION PROCEDURE using the second A button.
Az elterjedtebb kis frekvenciájú távirányító kép galéria (26.670-40.685 MHz)
Kis frekvenciájú távirányítók (26.670 - 40.685 MHz)
ALULUX
- 40MHz Black - 40.685 MHz
- 40MHz White - 40.685 MHz
APRIMATIC
- TG2M - 27.195 MHz
- TG4M - 27.195 MHz
- TG1 - 30.900 MHz
- TG2 - 30.900 MHz
B-B
- QTB1 - 30.875 MHz
- QTB2 - 30.875 MHz
- QTB4 - 30.875 MHz
BECKER
- FHS 10 - 01 - 40.685 MHz
- FHS 10 - 02 - 40.685 MHz
- FHS 20 - 01 - 40.685 MHz
- FHS 20 - 02 - 40.685 MHz
BELFOX
- DHS 40 1 - 40.685 MHz
- DHS 40 2 - 40.685 MHz
- DHS 40 4 - 40.685 MHz
BENINCA
- LOT1E - 30.875 MHz
- LOT2E - 30.875 MHz
- LOT4E - 30.875 MHz
- TX2 BLUE - 30.875 MHz
- TX4 BLUE - 30.875 MHz
- LOT1ECV - 40.665 MHz
- LOT2ECV - 40.665 MHz
- LOT4ECV - 40.665 MHz
BERNER
- M140 - 40.685 MHz
- S849-B1S40L - 40.685 MHz
- S849-B2S40L - 40.685 MHz
- S849-B3S40L - 40.685 MHz
- S849-B4S40L - 40.685 MHz
- SLX1MD - 40.685 MHz
- SLX2MD - 40.685 MHz
- SLX3MD - 40.685 MHz
- SLX4MD - 40.685 MHz
BFT
- TFQ1 - 30.875 MHz
- TFQ2 - 30.875 MHz
- TFQ4 - 30.875 MHz
- TO1 - 30.875 MHz
- TO2 - 30.875 MHz
- TO4 - 30.875 MHz
- TRQ2 - 30.875 MHz
- TX1 - 30.875 MHz
- TX3 - 30.875 MHz
- TX3 Blue - 30.875 MHz
- TZM2 - 30.875 MHz
BOSCH

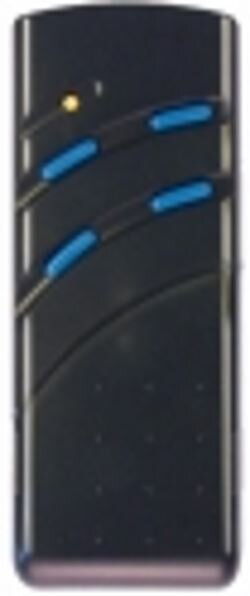

- 26.995 4K - 26.995 MHz

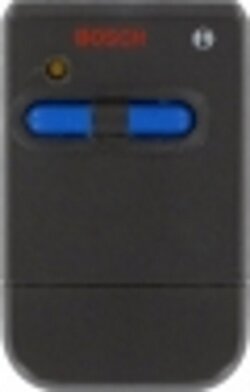

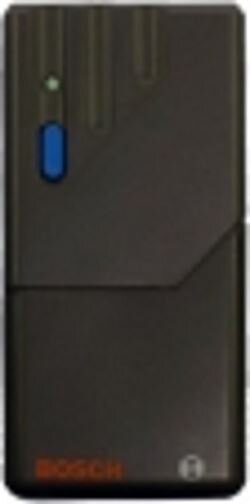

- 26.995 MHz - 26.995 MHz
- 26.995 MHz MINI - 26.995 MHz
- TOP262M - 26.995 MHz

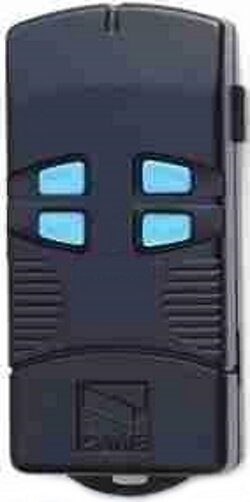

CAME

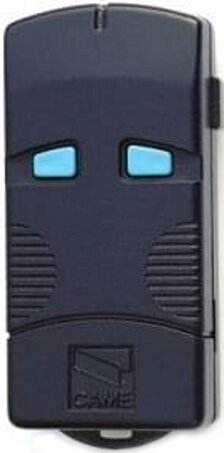

- TOP262M - 26.995 MHz
- TOP264M - 26.995 MHz
- TX4 - 26.995 MHz
- TOP302A - 30.900 MHz
- TOP302M - 30.900 MHz
- TOP304A - 30.900 MHz
CARDIN
- S466 TX2 - 27.195 MHz
- S466 TX4 - 27.195 MHz
- S738 TX2 - 27.195 MHz
- S738 TX4 - 27.195 MHz
- S38-TX2-M - 30.875 MHz
- S38-TX4 - 30.875 MHz
- S38-TX4-M - 30.875 MHz
- S48-TX2 - 30.875 MHz
- S48-TX2 PINK - 30.875 MHz
- S48-TX4 - 30.875 MHz
- S48-TX4 PINK - 30.875 MHz
DEA
- 30.875-1 - 30.875 MHz
- 30.875-2 - 30.875 MHz
- 30.875-4 - 30.875 MHz
ALBANO

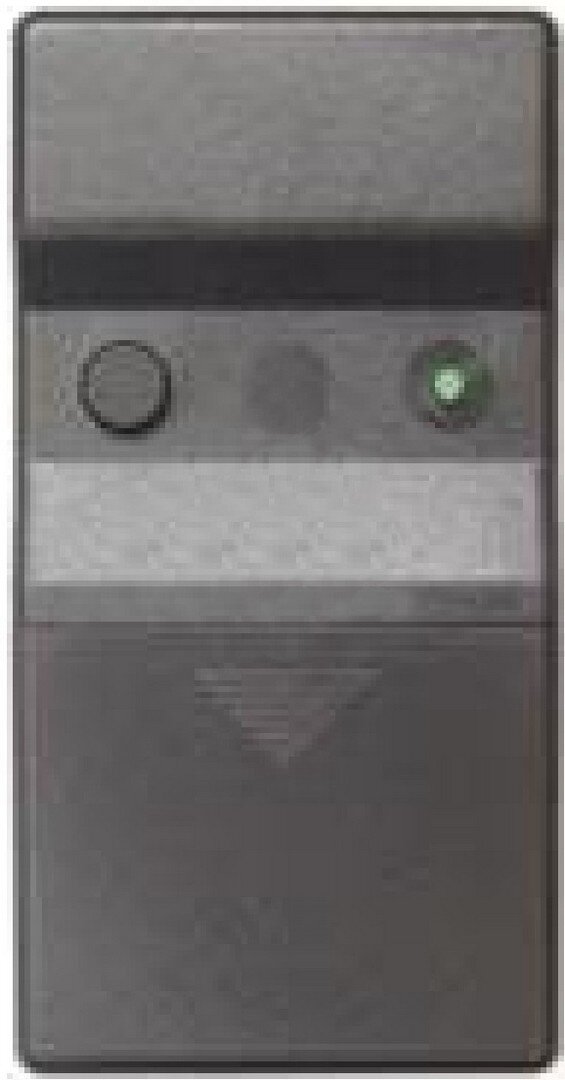

- 4096 TX1 - 26.995 MHz

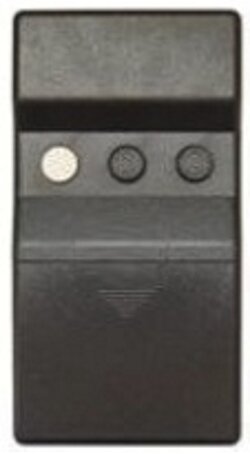

- 4096 TX4 - 26.995 MHz

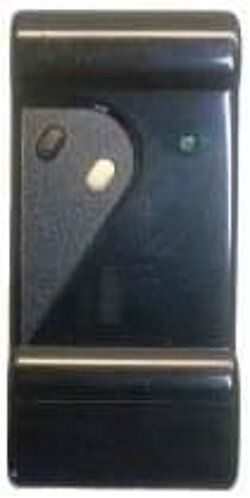

- AEMD11 COD.5 - 26.995 MHz

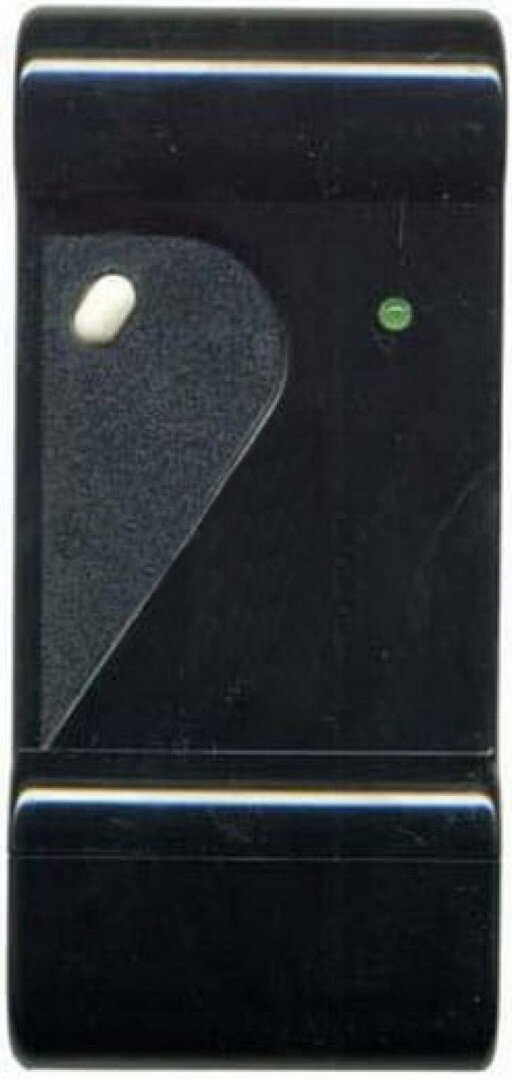

- TX-MD1 - 26.995 MHz

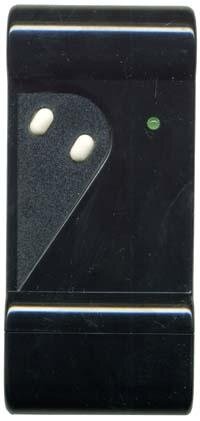

- TX-MD2 - 26.995 MHz

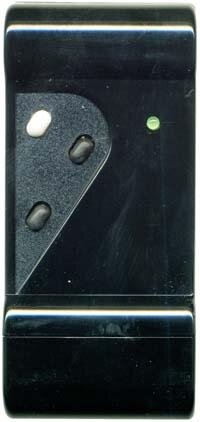

- TX-MD3 - 26.995 MHz
- 13122-1 - 30.875 MHz
- 13122-2 - 30.875 MHz
- MICRO TRINARY B 60 - 30.875 MHz
- MICRO TRINARY M 60 - 30.875 MHz
ALLMATIC
- AKMY1 - 30.875 MHz

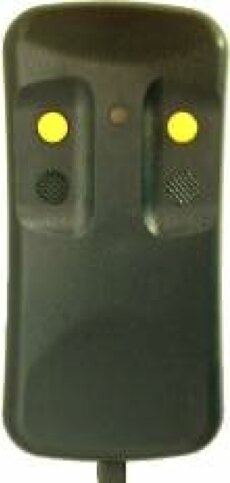

- AKMY2 - 30.875 MHz

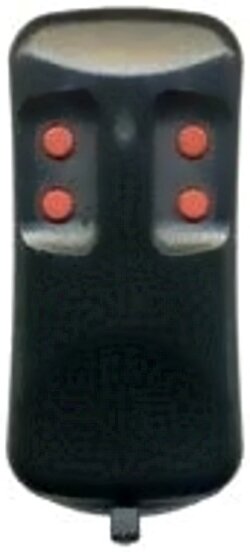

- AKMY4 - 30.875 MHz
- S38C - 30.875 MHz
- AKMX1 - 40.665 MHz
- AKMX2 - 40.665 MHz
- AKMX4 - 40.665 MHz
ALLTRONIK
- 27.015 MHz-1 - 27.015 MHz
- 27.015 MHz-2 - 27.015 MHz
- 27.015 MHz-3 - 27.015 MHz
- 27.015 MHz-4 - 27.015 MHz
- S 501 B1 - 27.015 MHz
- S415 TX1 - 27.015 MHz
- S415 TX2 - 27.015 MHz
- S429 MINI - 27.015 MHz
- S435B - 27.015 MHz
- 40.685 MHz-1 - 40.685 MHz
- 40.685 MHz-2 - 40.685 MHz
- 40.685 MHz-3 - 40.685 MHz
- 40.685 MHz-4 - 40.685 MHz
- S406 1 - 40.685 MHz
- S406 2 - 40.685 MHz
- S406 4 - 40.685 MHz
- S415 TX1 - 40.685 MHz
- S415 TX2 - 40.685 MHz
- S429 MINI - 40.685 MHz
- S435B - 40.685 MHz
DORMA
- MS41-2 - 40.685 MHz
- S41-1 - 40.685 MHz
- S41-2 - 40.685 MHz
- S41-4 - 40.685 MHz
ECOSTAR
- 40 MHz-1 - 40.685 MHz
- 40 MHz-2 - 40.685 MHz
EINHELL

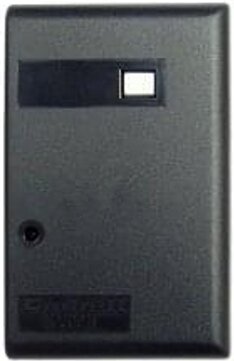

- F2000-1 - 26.995 MHz
- H126 - 26.995 MHz

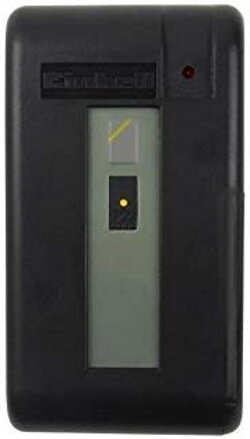

- H126 D - 26.995 MHz

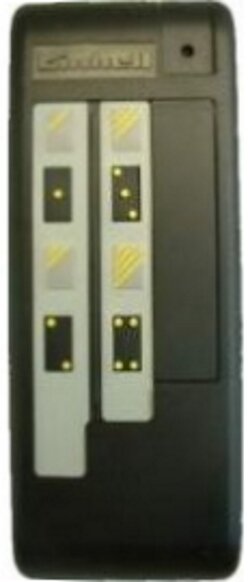

- H426 - 26.995 MHz

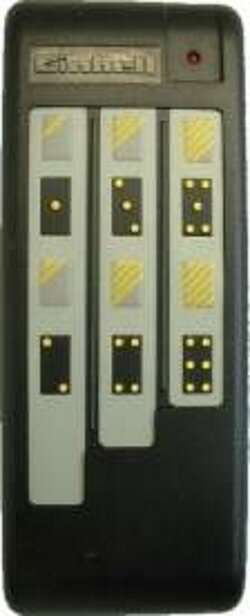

- H626 - 26.995 MHz
- F1024-1 - 27.015 MHz
ELEK
- KT2 - 30.875 MHz
- KTM-1 - 30.875 MHz
- KTM-2 - 30.875 MHz
ELKA
- SLX1MD - 40.685 MHz
- SLX2MD - 40.685 MHz
- SLX3MD - 40.685 MHz
- SLX4MD - 40.685 MHz
ELVOX
- ET02 - 40.665 MHz
ENDRESS
- BW27-1 - 27.095 MHz
- BW27-2 - 27.095 MHz
- BW27-4 - 27.095 MHz
EUROPE-AUTO

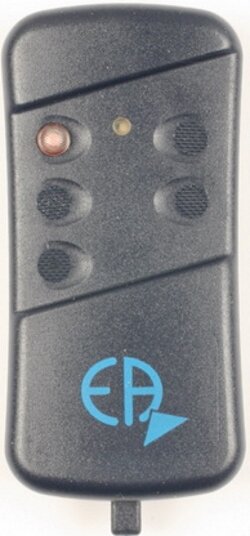

- AKMY1 - 26.995 MHz

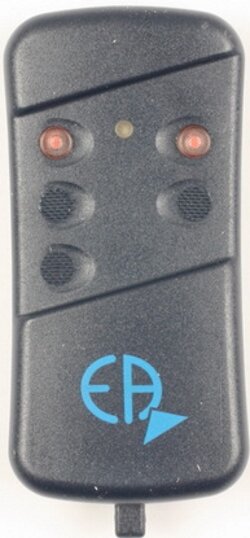

- AKMY2 - 26.995 MHz

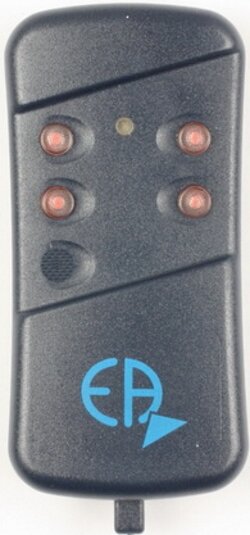

- AKMY4 - 26.995 MHz
- AKMY1 - 30.875 MHz
- AKMY2 - 30.875 MHz
- AKMY4 - 30.875 MHz
EXTEL
- 141-1 - 30.875 MHz
- 141-4 - 30.875 MHz
FAAC
- T31-1 - 30.875 MHz
- T31-2 - 30.875 MHz
- T31-3 - 30.875 MHz
- T31-MINI - 30.875 MHz
- T32-MINI - 30.875 MHz
- T32-1 - 30.875 MHz
- TMN31-1 - 30.875 MHz
- TMN31-2 - 30.875 MHz
- TMN31-3 - 30.875 MHz
- 40SL-1 - 40.685 MHz
- 40SL-2 - 40.685 MHz
- 40SL-3 - 40.685 MHz
FADINI
- ASTRO 78-2 - 30.875 MHz
- ASTRO 78-4 - 30.875 MHz
GAPOSA
- TXM2-29 - 29.700 MHz
- TXM29 - 29.700 MHz
- TXQG-29 - 29.700 MHz
GARADOR
- HS4 - 40.685 MHz
- HSE2 - 40.685 MHz
- HSM4 - 40.685 MHz
GAROG
- S466-2 - 40.685 MHz
- S466-4 - 40.685 MHz
GEBA

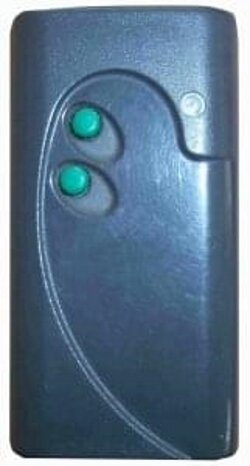

- RCA 26.995MHz TX2 - 26.995 MHz
DELMA
- 40MHz 2 CHANNEL - 40.685 MHz
- 40MHz 4 CHANNEL KING - 40.685 MHz
DELTRON
- S405 - 27.015 MHz
- S405 1 - 27.015 MHz
- S405 2 - 27.015 MHz
- S405 4 - 27.015 MHz
- S525 1 - 27.015 MHz
- S525 2 - 27.015 MHz
- S525 4 - 27.015 MHz
- S521 - 40.685 MHz

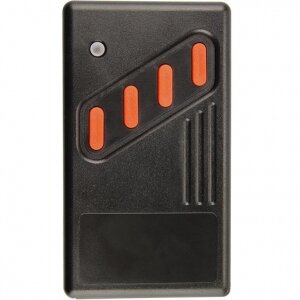

DICKERT
- AHS27-01 - 27.015 MHz
- AHS27-02 - 27.015 MHz
- AHS27-03 - 27.015 MHz
- AHS27-04 - 27.015 MHz

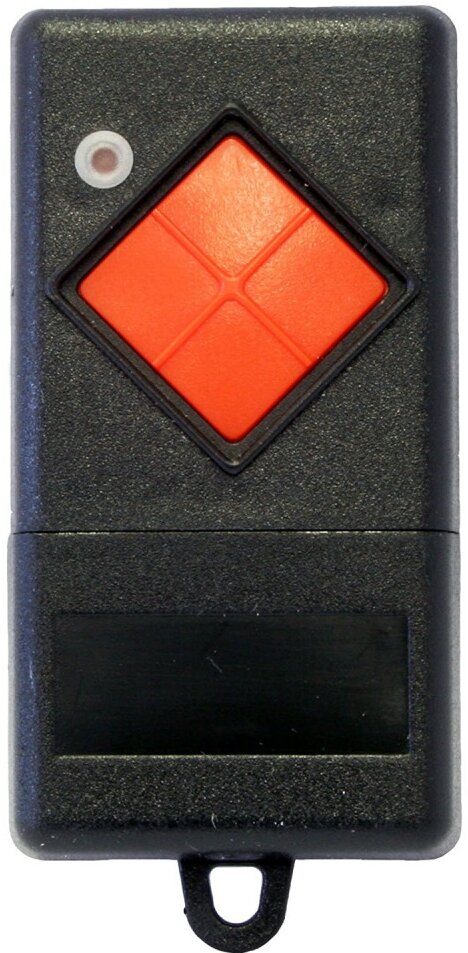

- MAHS27-01 - 27.015 MHz
- MAHS27-04 - 27.015 MHz
- AHS40-01 - 40.685 MHz
- AHS40-02 - 40.685 MHz
- AHS40-03 - 40.685 MHz
- AHS40-04 - 40.685 MHz
- FHS10-01 - 40.685 MHz
- FHS10-02 - 40.685 MHz
- FHS20-02 - 40.685 MHz
- FHS20-04 - 40.685 MHz
- MAHS40-01 - 40.685 MHz
- MAHS40-02 - 40.685 MHz
- MAHS40-03 - 40.685 MHz
- MAHS40-04 - 40.685 MHz
DITEC
- BIX2 - 40.685 MHz
- BIX4 - 40.685 MHz
- BIXAG4 - 40.685 MHz
HR
- AQ2640F4 - 26.995 MHz
- RQ2640F2 - 26.995 MHz
- AQ2640F4 - 27.015 MHz
- RQ2640F2 - 27.015 MHz
- AQ2640F4 - 27.095 MHz
- RQ2640F2 - 27.095 MHz
- AQ2640F4 - 27.195 MHz
- RQ2640F2 - 27.195 MHz
- AQ2640F4 - 29.700 MHz
- RQ2640F2 - 29.700 MHz
- AQ2640F4 - 30.875 MHz
- RQ2640F2 - 30.875 MHz
- AQ2640F4 - 30.900 MHz
- RQ2640F2 - 30.900 MHz
- AQ2640F4 - 40.665 MHz
- RQ2640F2 - 40.665 MHz
- AQ2640F4 - 40.685 MHz
- RQ2640F2 - 40.685 MHz
IUPPITER
- 1 - 30875 - 30.875 MHz
- 4 - 30875 - 30.875 MHz
LINDPOINTNER
- TX1 - 40.685 MHz
- TX4 - 40.685 MHz
LINEAR
- TX1 - 27.015 MHz
LUMINOX
- E127 - 27.195 MHz
- E327 - 27.195 MHz
MARANTEC
- D101 Blue - 27.095 MHz
- D101 Red - 27.095 MHz
- D102 - 27.095 MHz
- D102 Red - 27.095 MHz
- D104 - 27.095 MHz
- MASTERKEY
- KEY 30.900 - 30.900 MHz
- MERLIN
- M802 - 40.685 MHz
- M804 - 40.685 MHz
- MULTICODE
- 3079 40.685MHz - 40.685 MHz
- NEUKIRCHEN
- LW 40 S-1 - 40.685 MHz
- LW 40 S-2 - 40.685 MHz
- LW 40 S-4 - 40.685 MHz
- TX 40-1 - 40.685 MHz
- TX 40-2 - 40.685 MHz
- TX 40-4 - 40.685 MHz
- TX40 (1) - 40.685 MHz
- TX40 (2) - 40.685 MHz
- TX40 (4) - 40.685 MHz
NICE
- K2M 26.995 - 26.995 MHz
- K4M 26.995 - 26.995 MHz
- BT1K - 30.875 MHz
- BT2K - 30.875 MHz
- BT4K - 30.875 MHz
- K1 - 30.875 MHz
- K2 - 30.875 MHz
- K4 - 30.875 MHz

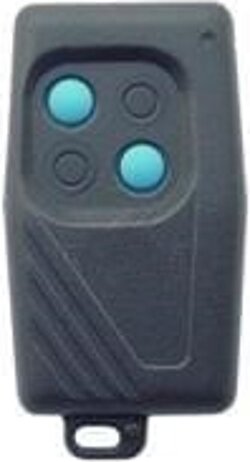

GIBIDI

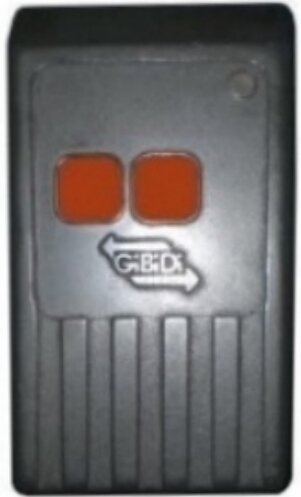

- 26.995-2 - 26.995 MHz

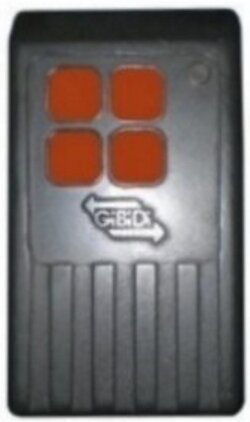

- 26.995-4 - 26.995 MHz

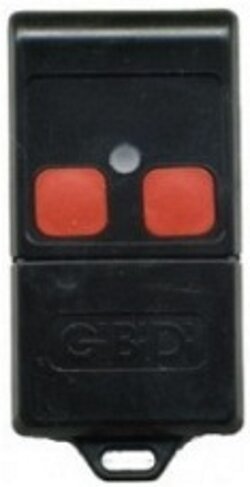

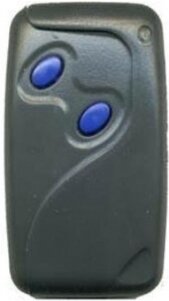

- MTQ2 - 26.995 MHz
- MTQ4 - 26.995 MHz
- MTQ2 - 40.685 MHz

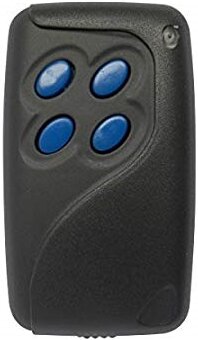

- MTQ4 - 40.685 MHz
- TMB40 - 40.685 MHz
GR
- TX2 - 30.875 MHz
GULLIVER
- MDRQ 1 - 30.875 MHz
- MDRQ 2 - 30.875 MHz
- HENDERSON
- 4050 - 40.685 MHz
- TX02 - 40.685 MHz
- TX03 - 40.685 MHz
- TX04 - 40.685 MHz

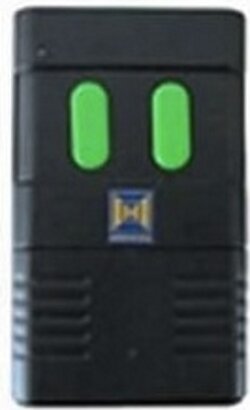

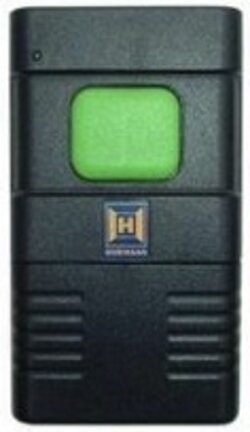

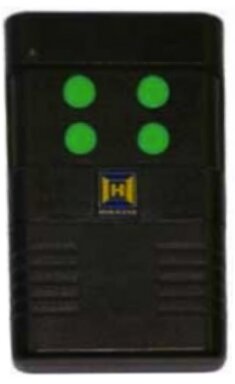

HORMANN
- DH01 - 26.995 MHz
- DH02 - 26.995 MHz
- DH04 - 26.995 MHz

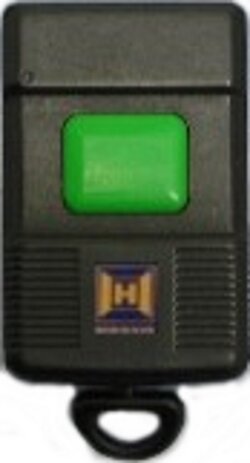

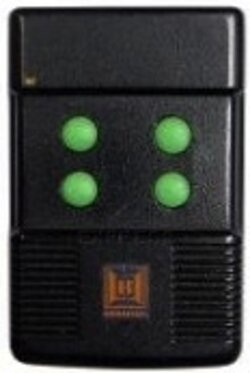

- DHM01 - 26.995 MHz

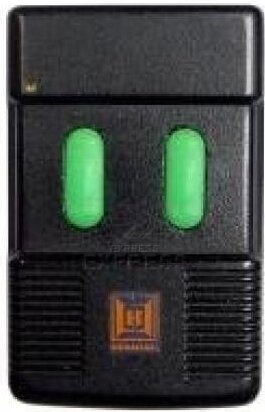

- DHM02 - 26.995 MHz
- DHM04 - 26.995 MHz

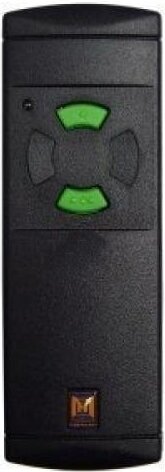

- HS2 - 26.995 MHz

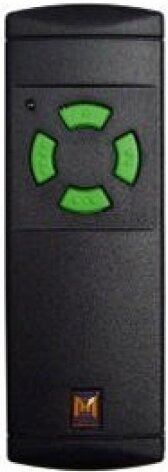

- HS4 - 26.995 MHz

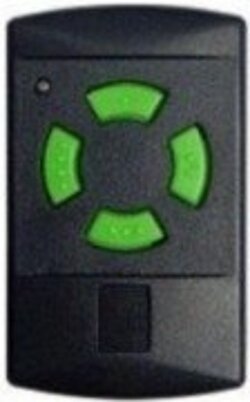

- HSM2 - 26.995 MHz
- HSM4 - 26.995 MHz
SEA
- 30.900 MHz-2 - 30.900 MHz
- 30.900 MHz-4 - 30.900 MHz
- 30900-2 OLD - 30.900 MHz
- 40.685 MHz-2 - 40.685 MHz
- 40.685 MHz-4 - 40.685 MHz
SEAV
- TXS1 - 30.875 MHz
- TXS4 - 30.875 MHz
SEIP
- 40-AM - 40.685 MHz
- SE40TX40.685 MHz
SERVO-LIFT
- 27.195 - 27.195 MHz
- 40.685 - 40.685 MHz
SICE

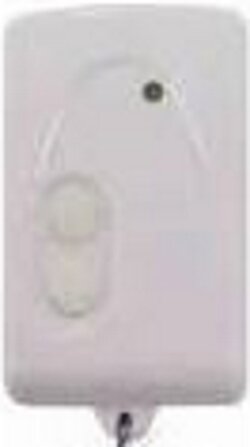

- PRINZ - 26.995 MHz
SMD
- 1K - 27.015 MHz
- 1K MINI - 27.015 MHz
- 2K - 27.015 MHz
- 2K MINI - 27.015 MHz
- 3K - 27.015 MHz
- 4K - 27.015 MHz
SOMFY
- 26.995 4K - 26.995 MHz
- RCS 100-1 - 40.685 MHz
- RCS 100-4 - 40.685 MHz
- RCS 101-1 - 40.685 MHz
SOMMER
- 4050 - 40.685 MHz
TEDSEN
- B1S40L - 40.685 MHz
- B2S40L - 40.685 MHz
- SL2 - 40.685 MHz
- SL3 - 40.685 MHz
- SL4 - 40.685 MHz
- SLX1MD - 40.685 MHz
- SLX2MD - 40.685 MHz
- SLX3MD - 40.685 MHz
- SLX4MD - 40.685 MHz
TELCOMA

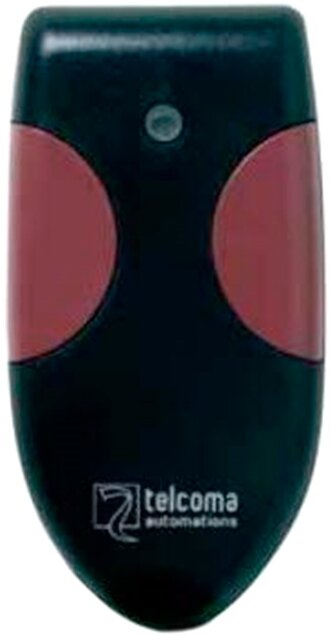

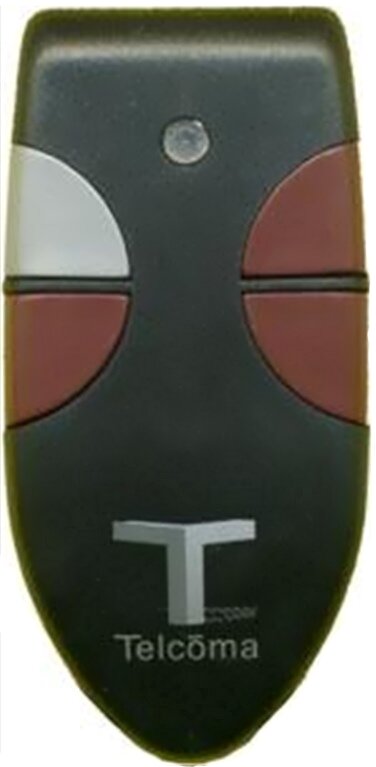

- FOX 2 - 26.995 MHz
- FOX 4 - 26.995 MHz
- RCKT1 - 30.875 MHz
- RCKT2 - 30.875 MHz
- RCKT2M - 30.875 MHz
- RCKT4 - 30.875 MHz
- RCKT4M - 30.875 MHz
TORAG
- S206 1 - 27.015 MHz
- S206 2 - 27.015 MHz
- S206 4 - 27.015 MHz
TORMATIC
- TX41-2 - 40.685 MHz
- TX41-4 - 40.685 MHz
TOUSEK
- AHS 40-04 - 30.875 MHz
- BT40-1B - 40.685 MHz
- BT40-2B - 40.685 MHz
- BT40-4B - 40.685 MHz
- TX41-2 - 40.685 MHz
- TX41-4 - 40.685 MHz
TREBI
- QTB1 - 30.875 MHz
- QTB2 - 30.875 MHz
- QTB4 - 30.875 MHz
V2
- TNQ1KF - 30.875 MHz
- TNQ2KF - 30.875 MHz
- TNQ4KF - 30.875 MHz
- TPQ1-AF - 30.875 MHz
- TPQ2-AF - 30.875 MHz
WECLA
- 807117F TX1 - 26.995 MHz
- 807117F TX2 - 26.995 MHz
- 40.685MHz 1K - 40.685 MHz
WELLER
- MS40B2 - 40.685 MHz
- MT40-2 - 40.685 MHz
- MT40A2-1 - 40.685 MHz
- MT40A2-2 - 40.685 MHz
- MT40A2-4 - 40.685 MHz
NORMSTAHL
- T40-1 - 40.685 MHz
- T40-1M - 40.685 MHz
- T40-4 - 40.685 MHz
- T40-4M - 40.685 MHz
NOVOFERM
- FHS10-01 - 30.875 MHz
- FHS10-02 - 30.875 MHz
- S41-1 - 40.685 MHz
- S41-2 - 40.685 MHz
- S41-4 - 40.685 MHz
OPEN-OUT
- MTQ2 26.995 - 26.995 MHz
- TQ2 26.995 - 26.995 MHz
- TQ4 26.995 - 26.995 MHz
- TX1 26.995 - 26.995 MHz
- MTQ4 26.995 - 30.875 MHz
PRASTEL
- KMFT1P - 26.995 MHz
- KMFT2P - 26.995 MHz
- KMFT4P - 26.995 MHz
- KMFT1P - 30.875 MHz
- KMFT2P - 30.875 MHz
- KMFT4P - 30.875 MHz
- MPSTL1 - 40.685 MHz
- MPSTL2 - 40.685 MHz
- MPSTL4 - 40.685 MHz
QUASAR
- 30875-2 - 30.875 MHz
- 30875-4 - 30.875 MHz
RADEMACHER
- RATOR 40MHz - 40.685 MHz
RIB
- T91F TX1 - 30.875 MHz
- T91F TX2 - 30.875 MHz
- T91F TX3 - 30.875 MHz
SCIAR
- 141-1 - 30.875 MHz
- 441-2 - 30.875 MHz
